XYCF
XINGYU
XYCF02

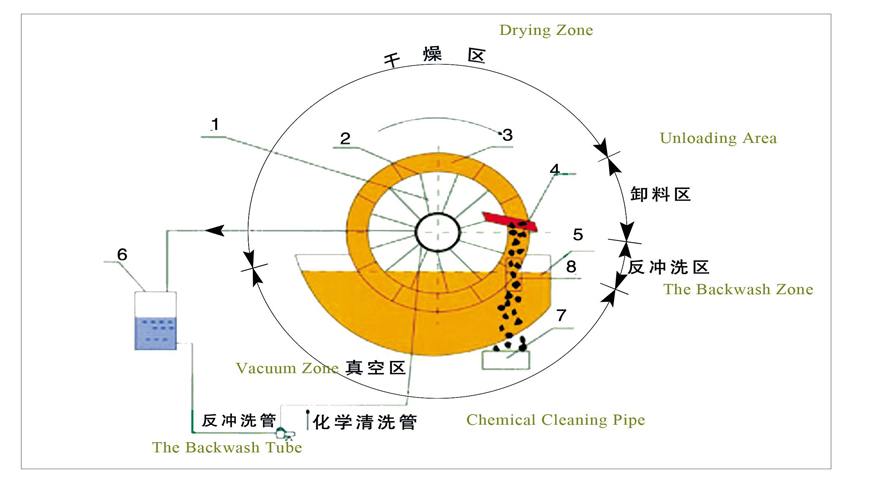

Vacuum ceramic disc filter is a high efficient, energy saving filtration equipment, using vacuum and ceramic plate with micro-pores for solid-liquid separation. The filter plates are made of white fused alumina, resisting to almost all temperatures and corrosive materials, and has a long operation life. The micro-pores in plates only allows liquid to flow through while blocking air and solids. Filtrate is sucked out of the ceramic filter plates as they are immersed into the slurry tank, and cakes forms on the surface of the plates
Ceramic filter ensures high productivity and superior process result for mining applications. This equipment can achieve efficient dewatering with competitive investment budgets, low installation and operating costs, and high safety. Our product have found their wide applications in the separation of selected mine and tails mine of nonferrous metal,ferrous metal,less-common metal and oxide of electrolysis residue,slag in chemical,environment protection and so on. The material fineness from 0.4um to 0.75 um and various superfine materials.
| Model | Filtration Area (m2) | Rings of filter plates | Qty. of Filter plate (Pcs) | Tank volume (m³) | Installed power (Kw) | Operational power (Kw) | Outer Dimensions (L*W*H), (m) |
| XYCF-1 | 1 | 1 | 12 | 0.21 | 4.5 | 4.3 | 1.2*1.5*1.4 |
| XYCF-4 | 4 | 2 | 24 | 1 | 6 | 5.8 | 1.6*1.9*2.1 |
| XYCF-6 | 6 | 2 | 36 | 1.2 | 8 | 7.5 | 3.0*2.2*2.1 |
| XYCF-9 | 9 | 3 | 36 | 1.7 | 9 | 8.5 | 3.0*2.8*2.6 |
| XYCF-12 | 12 | 4 | 48 | 2.2 | 13 | 12.5 | 3.6*2.8*2.6 |
| XYCF-15 | 15 | 5 | 60 | 3.7 | 13 | 12.5 | 3.8*2.8*2.6 |
| XYCF-18 | 18 | 6 | 72 | 3.7 | 15 | 14.5 | 4.1*2.9*2.6 |
| XYCF-21 | 21 | 7 | 84 | 4.8 | 17 | 16.5 | 4.6*2.9*2.6 |
| XYCF-24 | 24 | 8 | 96 | 5.5 | 17.5 | 16.5 | 4.6*2.9*2.6 |
| XYCF-27 | 27 | 9 | 108 | 6 | 17.5 | 16.5 | 5.2*2.9*2.6 |
| XYCF-30 | 30 | 10 | 120 | 6.7 | 21 | 20.5 | 5.5*2.9*2.6 |
| XYCF-36 | 36 | 12 | 144 | 8 | 33 | 32 | 6.0*2.9*2.6 |
| XYCF-45 | 45 | 15 | 180 | 10 | 33 | 32 | 6.6*2.9*2.6 |
| XYCF-60 | 60 | 15 | 180 | 12.5 | 47 | 46.5 | 6.7*3.3*3.0 |
| XYCF-80 | 80 | 20 | 240 | 16.4 | 53 | 52.5 | 8.2*3.3*3.0 |
| XYCF-102 | 102 | 17 | 204 | 18.5 | 71 | 70.5 | 7.9*3.6*3.3 |
| XYCF-120 | 120 | 20 | 240 | 20 | 80 | 78.5 | 8.7*3.6*3.3 |
| XYCF-150 | 150 | 25 | 360 | 24 | 92 | 91 | 9.2*3.6*3.3 |
